Motion Tracking

Motion tracking in typesetting refers to applying motion tracking data from softwares like Blender or Mocha Pro to match the motion of the lines to an element of a video.

Installation

1. You need a software like Blender or Mocha Pro to generate the motion tracking data. See the comparison between them below.
2. You need a way to trim the video. You can either use the latest x264 or ffmpeg to trim the video. See the comparison between them below.
3. You also need an Aegisub script called Aegisub Motion (shortened to a-mo in conversation) from Dependency Control.

Mocha Pro versus Blender

I'll only highlight the differences here.

Subject	Mocha Pro	Blender
Cost	Paid	Free and Open Source
Tracking Method	Planar tracking i.e. tracks flat plane region across the video	Point tracking i.e. tracks a specific point in the video using the features around that point.
Output	Tracking data output is already available	External plugin is required to extract tracking data
Tracking Quality	Extremely robust (it is essentially industry standard)	The point tracking data has been repurposed for fansubbing purposes so it can sometimes produce jittery results (solved through smoothing of data) but surprisingly performs better in cases where mocha fails.

I personally use both because why not. Many people will find Mocha Pro easier in the first glance. I tend to prefer Blender and fall back to Mocha Pro when Blender fails. If you are still unsure, I'd suggest to learn Mocha Pro first and then later learn Blender.

x265 versus ffmpeg

Subject	Mocha Pro	Blender
Output	Single Video	One image for one frame of the video
Accuracy	Generally robust but in rare cases can lead to corrupted first or last frame in the video	Extremely robust
Availability	You have to use the x264 that can encode the video format you are working on	Works almost every time

I always use ffmpeg. The output of multiple images kind of makes folder messy but I will teach you a way to make a clean output folder using ffmpeg later on if you decide to use it.

Configuring Aegisub Motion

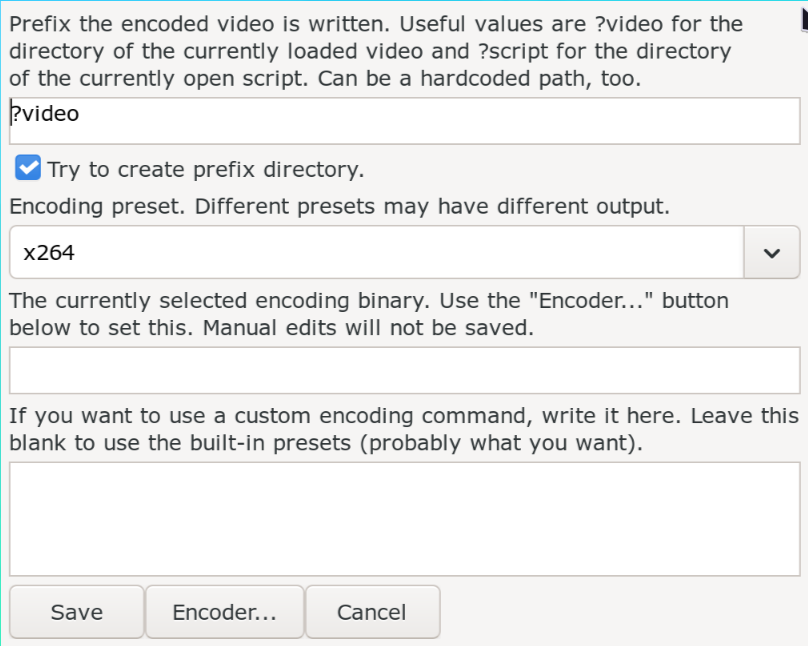

Let's configure Aegisub Motion so we can tell how to trim videos. Install the script Aegisub-Motion if you have not already. Once the script is loaded, Go to Automation -> Aegisub-Motion -> Trim Settings. The following GUI will pop up:

1. In the first box, you can select where the trimmed video will be saved in. Default is fine as ?video will save the trimmed video in the same location as the video currently loaded in Aegisub. Change it to ?script if you want the trimmed video to be saved in the folder where the currently loaded subtitle file is located at.

2. The checkbox below it that says Try to create prefix directory will create any folders that need to be made in order to save the video. Keep it checked.

3. Then below that you have a dropdown where you can either select x264 or ffmpeg. Select what you prefer.

4. If you are using Windows, press the Encoder... button. A file picker will be opened where you must navigate to the executable file. Select x264.exe or ffmpeg.exe file wherever you have chosen to keep it.

   If you are a non Windows user, type which ffmpeg or which x264. Once you know which folder, it is stored in, press the Encoder... button and navigate to that folder and select ffmpeg or x264 binary.

5. Then press OK button to save the settings.

Clean Folders Using ffmpeg

If you chose ffmpeg but don't want hundreds of images dumped in the same folder as the main video, follow these steps to get clean folders.

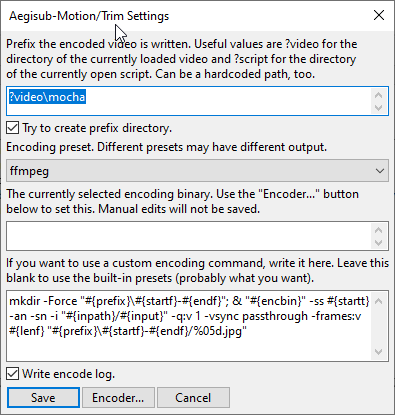

1. Open the config for Aegisub-Motion by going to Automation -> Aegisub-Motion -> Trim Settings.
2. In the first box, type ?video\mocha if you want to save the trimmed images in the same folder as the video loaded in Aegisub or ?script\mocha if you want to save them in the same folder as the subtitle loaded in Aegisub.
3. Keep the Try to create prefix directory checked.
4. Select ffmpeg in the dropdown.

5. In the bottom most box, If you are a Windows user, copy and paste the following:

   mkdir -Force "#{prefix}\#{startf}-#{endf}"; & "#{encbin}" -ss #{startt} -an -sn -i "#{inpath}/#{input}" -q:v 1 -vsync passthrough -frames:v #{lenf} "#{prefix}\#{startf}-#{endf}/%05d.jpg"


   If you are a non-Windows user, copy and paste the following:

   mkdir -p "#{prefix}/#{startf}-#{endf}" && "#{encbin}" -ss #{startt} -an -sn -i "#{inpath}/#{input}" -q:v 1 -vsync passthrough -frames:v #{lenf} "#{prefix}/#{startf}-#{endf}/%05d.jpg"


   1. Click OK button to save the settings.

What this will do is create a folder called mocha in your video or subtitle folder and for each trim, it'll create a new sub folder with all the images for that sign there.

Note

It's not necessary but if you are interseted in how I made the command above, you can follow the guide in this page.

Trimming a Video

In order to facilitate the process of importing small, manageable sections of video into your motion tracking software of choice, Aegisub-Motion provides a way to automatically trim and encode the video that is currently loaded in Aegisub.

The script Aegisub-Motion ships with two separate trimming macros. They are called Trim and Trim Each. I personally never use Trim Each. I bind Automation -> Aegisub-Motion -> Trim to a hotkey and whenever I want to trim, I select a line(s) and press that hotkey.

Trim vs Trim Each

The difference between Trim and Trim Each lies in how they calculate where to trim the video.

Trim looks at all of the selected lines and trims the video with the start time as the start of the earliest line among selected lines and with the end time as the end of the latest line among selected lines.

Trim Each looks at each individual line in the selection and creates a trim for each line separately. It's like selecting those lines one by one and running Trim.

Generating Motion Tracking Data

If you have followed the steps above correctly, you now have Aegisub-Motion set up correctly and now can trim a video. Once you have a trimmed video, you will now have to load that trimmed video into either Mocha Pro or Blender to generate motion tracking data.

Guides to using Mocha Pro and Blender will make this page too long so I have separated them into their own pages. The next two pages in this guide will teach you how to use Mocha Pro and Blender to generate motion tracking data respectively.

So head on there and once you have a tracking data, come back to this page and continue below on how to apply that motion tracking data to subtitles.

Applying Motion Tracking Data

So I'm going to assume you learned using the following two pages how to generate motion tracking data. Once we have it, we need to apply the motion tracking data to the subtitle.

Matching the Length of Data with Lines

First select all the lines where you need to apply the tracking data. The number of frames in the selected line must be equal to the number of frames in the tracking data. If you trim a video using a line and then apply the tracking data to the same line, it will always match but if you try to apply the same tracking data to another line, make sure that they have same length.

Note

It does not mean that each line you select should be the same as the length of tracking data. It means that the frame from the start of the earliest line to the end of the latest line should match with the tracking data. Commented lines are not counted in this.

Aegisub-Motion Apply GUI

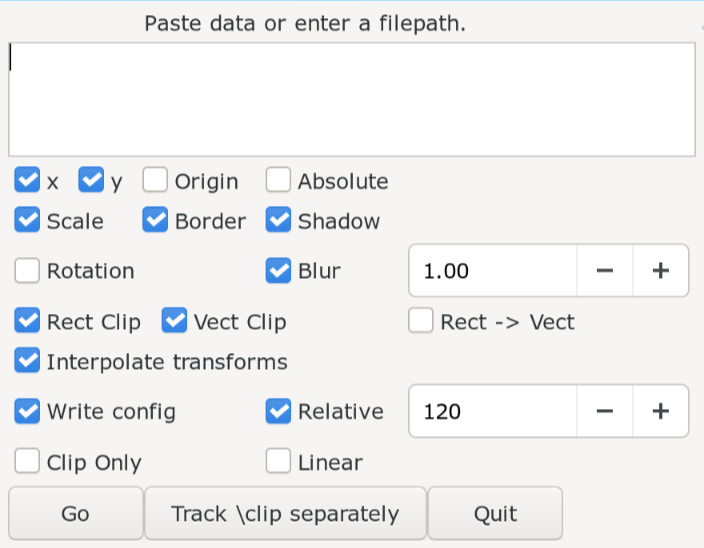

In order to apply the tracking data to lines, we can use Automation -> Aegisub-Motion -> Apply. The following GUI will appear.

Let's understand this GUI first and then we shall see an example of its application.

Element	Meaning
Data Box
x	If enabled, horizontal movement from the motion tracking data is used to change \pos tag
y	If enabled, vertical movement from the motion tracking data is used to change \pos tag
Origin	If enabled and \org tag exists in line, the x and y checkbox also changes \org the same way \pos is changed Rotation from tracking data is not properly calculated so rotation and perspective may not be accurate when this is ticked.
Scale	If enabled, scale from the motion tracking data is used to change \fscx and \fscy tags.
Border	If enabled, the border of line is scaled along with scale of line i.e. if line gets bigger, border also gets bigger and vice versa Needs Scale to be enabled for it to work
Shadow	If enabled, the shadow of line is scaled along with scale of line i.e. if line gets bigger, shadow also gets bigger and vice versa Needs Scale to be enabled for it to work
Rotation	If enabled, rotation from the motion tracking data is used to change \frz tag.
Blur	If enabled, the blur of the line is scaled along with scale of line i.e. if line gets bigger, blur also increases and vice bersa Needs Scale to be enabled for it to work Since blur does not scale linearly like border and shadow does, the box beside blur checkbox allows you to enter a factor to amplify the blur but I never use it. I'd rather use Frame-by-Frame transform if blur does not look correct after applying the data
Rect Clip	If enabled, the tracking data will also be applied to any rectangular clip if the clip exists in line
Vect Cliip	If enabled, the tracking data will also be applied to any vectorial clip if the clip exists in line
Rect -> Vect	If enabled, rectangular clips present in the line will be converted to vectorial clip Don't enable this since vectorial clip is more computationally expensive than rectangular clip
Interpolate transforms	If enabled, the values from the transform tags will be calculated for each frame and added to line If disabled, an attempt to recalculate the transform time for each line is made Any tags that motion tracking data will affect will not be transformed
Linear	If enabled, makes an attempt to apply the whole motion tracking data in a single line using transforms and move tags instead of splitting it frame by frame It will succeed if the motion is actually linear but if it is not, this will fail spectacularly
Relative	Explained in more detail below
Clip Only	Only apply the tracking data to the rectangular or vectorial clip present in the line and nothing else
Absolute	This takes position in the tracking data and applies it to lines I never use it and you don't have to either. Just give position to line in Aegisub and use that

Relative

I wanted to explain this separately because this is kind of important. Before you apply the motion tracking data, you will obviously have a line that will have a certain position, scale, border and so on. Aegisub-Motion has to take these tag values as reference and then apply motion tracking data to it. So Aegisub-Motion will either reduce or add values in reference to these tag values.

Most of the time, we will set these reference tags in the first frame of the line. However, you will find situations where this is not possible. So you can then press Right until you reach a frame where you can add reference tags. But then you will have to tell Aegisub-Motion to consider this when applying the motion tracking data.

This is where Relative comes in. In the GUI above, you will see checkbox named Relative with a box beside it. The number in this box is the reference frame. If the box has 1, it means the tags in the selected line looks ok for the frame 1 but for any other frame, we will have to apply motion tracking data for it to look ok.

But let's say that the you can't style the tags in first frame and you instead typesetted a line in 120th frame after the start. You could type the number 120 manually in the box of course but if you are already in that frame in Video Box, you can open the Apply GUI and it will automatically fill it for you.

Example

Isekai Quartet 2 - Episode 08: 0:06:33

A pretty simple example with just zoom.

Track Clip Separately

TODO

Fixing the Clipboard Issue in Linux

If you have motion tracking data in clipboard and you open the Apply GUI, the data box will automatically be filled from your clipboard but not if you are in Linux. This is outrageous. It's unfair. So let's fix it.

Go to the folder where Aegisub scripts are located in. Find the file a-mo.Aegisub-Motion.moon and open it in any text editor of your choice. In line 160, change

dataString = (jit.os != "Linux") and clipboard.get!

to

dataString = clipboard.get!

Now it should also work in Linux. This is because arch1t3ct fixed the clipboard issue in his fork.

Deriving Motion Tracking Data

There are cases where you have a motion tracked lines in Aegisub but no longer have the motion tracking data that created those lines. If you need the tracking data again (perhaps to apply it to another line), you could motion track the sign in Mocha Pro or Blender again but there is a better way. You can derive the motion tracking data from the lines in Aegisub.

You can do that using an Aegisub script called Derive Track by The0x539. It is not in Dependency Control so you will have to install using manual method by downloading the script from the github repo If you forgot how to install Aegisub scripts manually, refer back to the guide again.

To use this, select the lines which was created by applying motion tracking data, go to Automation -> Aegisub-Motion -> Derive. A text box with motion tracking data will appear. Just copy it and use it like a normal motion tracking data.

Essentially, the selected lines must be greater than two in number, must have same text, must be consecutive in time, have same layer and should either all be commented or all be uncommented for you to be able to use this script to derive motion tracking data.

If you made changes after applying motion tracking data to line like applying Blur and Tag script, you cannot run this. You'd have to select all the lines that have same layer for this to work.

You can also use the lines made by Frame by Frame transform to derive motion tracking data from it.

Perspective Tracking

This is Aegisub-Motion but for handling cases where the perspective of the sign changes. For Aegisub-Motion, you would use After Effects Transform Data from Mocha Pro or Blender but this script requires you to export After Effects Power Pin data from those programs.

The script we will use is called Aegisub-Perscptive Motion (shortened to pers-mo in conversation) by arch1t3ct. It is available in Dependency Control for you to install. The GUI of that script looks like this:

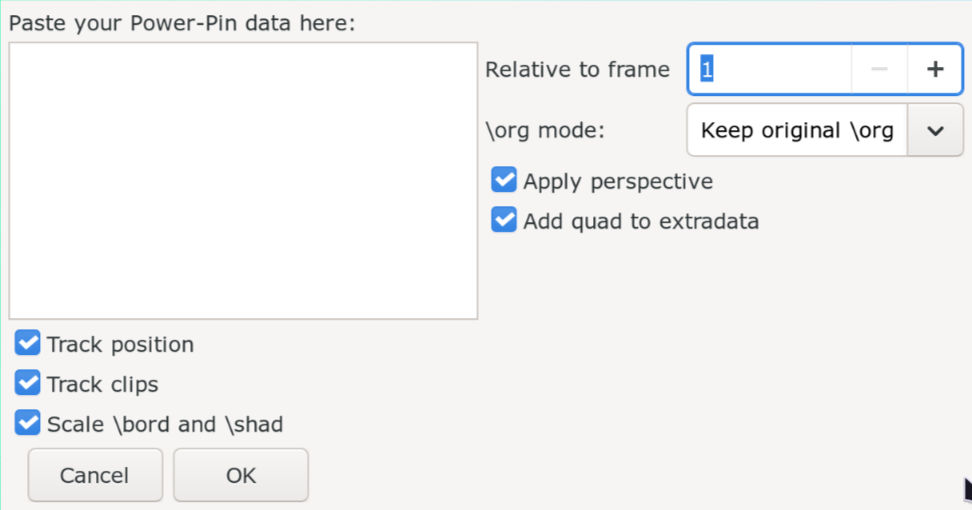

Let's talk about few elements of the GUI:

Item	Description
Apply Perspective	Enable it if you have not added perspective to the lines using perspective tool in Aegisub. When this is enabled, appropriate perspective transformation is derived from the power-pin data. If the script finds perspective tags on the line, it will uncheck this automatically
Relative to frame	Just like relative to frame of Aegisub-Motion as explained above
\org mode	The dropdown consists of the same options that perspective tool has Refer back to that page to find out what they mean
Add quad to extradata	If enabled, adds the quad data to each line's extradata just like the perspective tool adds when you use it
Track Position	If enabled, the position of the line will be updated using the power-pin data
Track Clips	Just like above but for clips
Scale \bord and \shad	Scale border and shadow up or down based on the scale of the line

Using Aegisub-Perspective Motion

1. If the power-pin data is in clipboard when you open this script, it should be auto-filled in GUI of Aegisub-Perspective-Motion.
2. If the power-pin data is in some file, it can be manually copied and pasted in the textbox of the GUI.
3. If the user manually uses Aegisub to apply perspective to the line (which is recommended), Aegisub-Perspective-Motion will untick the Apply Perspective checkbox automatically. If Apply Perspective is ticked, then Aegisub-Perspective-Motion will attempt to apply the perspective using the power-pin data.
4. Click Ok button to apply.

TODO: Add example

Derive Perspective Tracking Data

Just like motion tracking data for Aegisub-Motion could be derived, the power-pin data for the Aegisub-Perspective Motion can also be derived. We do this using a script called Derive Perspective Track by arch1t3ct. Install it from Dependency Control. It's usage is similar to the Derive Track script as explained above.
